Hygienic BoxDrain

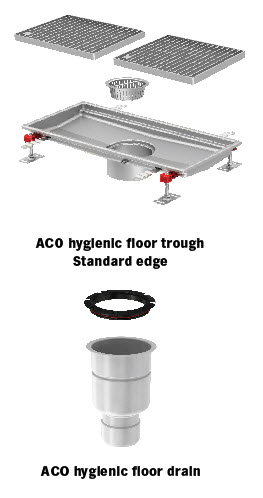

Floor Trough Adjustable Solutions

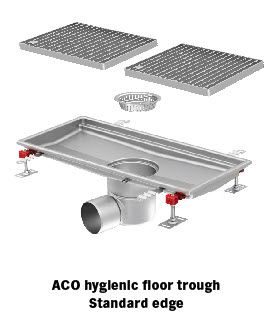

Floor Trough Fixed Solutions

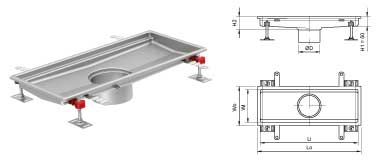

The dimensions of the Hygienic BoxDrain for concrete, tiles and resin floors can be easily specified to meet exact project requirements or easily chosen from predefined fixed dimensions.

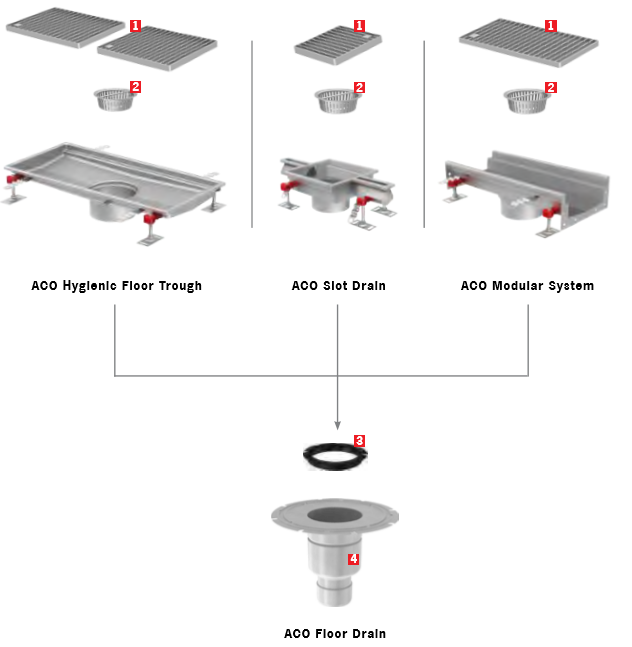

ACO Hygienic BoxDrain System Oveview

Hygienic Floor Trough System
  1. Grates
  2. Silt Basket
  3. Friction ring
  4. ACO Floor Drain body

Product Features

  • Hygienic design EHEDG document No. 8, 13, 44 and NSF/ANSI 3-A 14159-2014
  • Available in AISI 304 or AISI 316L grades of stainless steel
  • Fully pickle passivated
  • Minimal longitudal slope 1%
  • Min. cross sectional slope 5°
  • V-shape bottom for width < 11.81"
  • Reinforced bottom for width over 11.81"
  • Rubber edge infill
  • Rounded corners 1/8" or larger
  • Easy and secure adjustable connection with floor drain
  • Hygienic grates with slip resistance
  • Adjustable levelling feet 2.36" - 4.33"
  • Installation anchors for securing into concrete
  • 4.92" diameter outlet connects to ACO 8" Hygienic Floor Drain body
  • 5.59" diameter outlet connects to ACO 10" Hygienic Floor Drain body
  • 7.87" diameter outlet connects to ACO 12" Hygienic Floor Drain body

BoxDrain Standard Products

Trough Standard

Hygienic BoxDrain Standard Products

Wo
in
(mm)		Wl
in
(mm)		Channel dimensions Lo
in (mm)		Channel dimensions Li
in (mm)		H2
in (mm)		∅D
in
(mm)		Floor drainMaterialPart No.
NSF7.87
(200)		6.69
(170)		20.87
(530)		19.69
(500)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI
304		416584
NSF7.87
(200)		6.69
(170)		20.87
(530)		19.69
(500)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI 316L416602
NSF7.87
(200)		6.69
(170)		32.68
(830)		31.50
(800)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI
304		416585
NSF7.87
(200)		6.69
(170)		32.68
(830)		31.50
(800)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI 316L416603
NSF7.87
(200)		6.69
(170)		40.55
(1030)		39.37
(1000)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI
304		416586
NSF7.87
(200)		6.69
(170)		40.55
(1030)		39.37
(1000)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI 316L416604
NSF7.87
(200)		6.69
(170)		48.43
(1230)		47.24
(1200)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI
304		416587
NSF7.87
(200)		6.69
(170)		48.43
(1230)		47.24
(1200)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI 316L416605
NSF7.87
(200)		6.69
(170)		60.24
(1530)		59.06
(1500)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI
304		416588
NSF7.87
(200)		6.69
(170)		60.24
(1530)		59.06
(1500)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI 316L416606
NSF7.87
(200)		6.69
(170)		79.92
(2030)		78.74
(2000)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI
304		416589
NSF7.87
(200)		6.69
(170)		79.92
(2030)		78.74
(2000)		2.36
(60)		4.92
(125)		ACO 8" Hygienic Floor DrainAISI 316L416607
NSF7.87
(200)		6.69
(170)		20.87
(530)		19.69
(500)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416590
NSF7.87
(200)		6.69
(170)		20.87
(530)		19.69
(500)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416608
NSF7.87
(200)		6.69
(170)		32.68
(830)		31.50
(800)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416591
NSF7.87
(200)		6.69
(170)		32.68
(830)		31.50
(800)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416609
NSF7.87
(200)		6.69
(170)		40.55
(1030)		39.37
(1000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416592
NSF7.87
(200)		6.69
(170)		40.55
(1030)		39.37
(1000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416610
NSF7.87
(200)		6.69
(170)		48.43
(1230)		47.24
(1200)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416593
NSF7.87
(200)		6.69
(170)		48.43
(1230)		47.24
(1200)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416611
NSF7.87
(200)		6.69
(170)		60.24
(1530)		59.06
(1500)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416594
NSF7.87
(200)		6.69
(170)		60.24
(1530)		59.06
(1500)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416612
NSF7.87
(200)		6.69
(170)		79.92
(2030)		78.74
(2000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416695
NSF7.87
(200)		6.69
(170)		79.92
(2030)		78.74
(2000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416613
NSF11.81
(300)		10.63
(270)		12.99
(330)		11.81
(300)		2.17
(55)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416614
NSF11.81
(300)		10.63
(270)		12.99
(330)		11.81
(300)		2.17
(55)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416628
NSF11.81
(300)		10.63
(270)		24.80
(630)		23.62
(600)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416615
NSF11.81
(300)		10.63
(270)		24.80
(630)		23.62
(600)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416629
NSF11.81
(300)		10.63
(270)		40.55
(1030)		39.37
(1000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416616
NSF11.81
(300)		10.63
(270)		40.55
(1030)		39.37
(1000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416630
NSF11.81
(300)		10.63
(270)		60.24
(1530)		59.06
(1500)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416617
NSF11.81
(300)		10.63
(270)		60.24
(1530)		59.06
(1500)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416631
NSF11.81
(300)		10.63
(270)		79.92
(2030)		78.74
(2000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416618
NSF11.81
(300)		10.63
(270)		79.92
(2030)		78.74
(2000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416632
NSF11.81
(300)		10.63
(270)		119.29
(3030)		118.11
(3000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416619
NSF11.81
(300)		10.63
(270)		119.29
(3030)		118.11
(3000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416633
NSF11.81
(300)		10.63
(270)		158.66
(4030)		157.48
(4000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI
304		416620
NSF11.81
(300)		10.63
(270)		158.66
(4030)		157.48
(4000)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic Floor Drain		AISI 316L416634
NSF11.81
(300)		10.63
(270)		12.99
(330)		11.81
(300)		2.17
(55)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI
304		416621
NSF11.81
(300)		10.63
(270)		12.99
(330)		11.81
(300)		2.17
(55)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI 316L416635
NSF11.81
(300)		10.63
(270)		24.80
(630)		23.62
(600)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI
304		416622
NSF11.81
(300)		10.63
(270)		24.80
(630)		23.62
(600)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI 316L416636
NSF11.81
(300)		10.63
(270)		40.55
(1030)		39.37
(1000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI
304		416623
NSF11.81
(300)		10.63
(270)		40.55
(1030)		39.37
(1000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI 316L416637
NSF11.81
(300)		10.63
(270)		60.24
(1530)		59.06
(1500)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI
304		416624
NSF11.81
(300)		10.63
(270)		60.24
(1530)		59.06
(1500)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI 316L416638
NSF11.81
(300)		10.63
(270)		79.92
(2030)		78.74
(2000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI
304		416625
NSF11.81
(300)		10.63
(270)		79.92
(2030)		78.74
(2000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI 316L416639
NSF11.81
(300)		10.63
(270)		119.29
(3030)		118.11
(3000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI
304		416626
NSF11.81
(300)		10.63
(270)		119.29
(3030)		118.11
(3000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI 316L416640
NSF11.81
(300)		10.63
(270)		158.66
(4030)		157.48
(4000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI
304		416627
NSF11.81
(300)		10.63
(270)		158.66
(4030)		157.48
(4000)		2.36
(60)		7.87
(200)		ACO 12" Hygienic Floor DrainAISI 316L416641
NSF15.75
(400)		14.57
(370)		16.93
(430)		15.75
(400)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
304		416642
NSF15.75
(400)		14.57
(370)		16.93
(430)		15.75
(400)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI 316L416648
NSF15.75
(400)		14.57
(370)		24.80
(630)		23.62
(600)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
304		416643
NSF15.75
(400)		14.57
(370)		24.80
(630)		23.62
(600)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI 316L416649
NSF15.75
(400)		14.57
(370)		32.68
(830)		31.50
(800)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
304		416644
NSF15.75
(400)		14.57
(370)		32.68
(830)		31.50
(800)		2.36
(60)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI 316L416650
NSF15.75
(400)		14.57
(370)		16.93
(430)		15.75
(400)		2.36
(60)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416645
NSF15.75
(400)		14.57
(370)		16.93
(430)		15.75
(400)		2.36
(60)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI 316L416651
15.75
(400)		14.57
(370)		24.80
(630)		23.62
(600)		2.36
(60)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416646
NSF15.75
(400)		14.57
(370)		24.80
(630)		23.62
(600)		2.36
(60)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416652
15.75
(400)		14.57
(370)		32.68
(830)		31.50
(800)		2.36
(60)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416647
NSF15.75
(400)		14.57
(370)		32.68
(830)		31.50
(800)		2.36
(60)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416653
NSF19.69
(500)		18.50
(470)		20.87
(530)		19.69
(500)		2.56
(65)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
304		416654
NSF19.69
(500)		18.50
(470)		20.87
(530)		19.69
(500)		2.56
(65)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
316L		416660
NSF19.69
(500)		18.50
(470)		32.68
(830)		31.50
(800)		2.56
(65)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
304		416655
NSF19.69
(500)		18.50
(470)		32.68
(830)		31.50
(800)		2.56
(65)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
316L		416661
NSF19.69
(500)		18.50
(470)		40.55
(1030)		39.37
(1000)		2.56
(65)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
304		416656
NSF19.69
(500)		18.50
(470)		40.55
(1030)		39.37
(1000)		2.56
(65)		5.59
(142)		ACO 10"
Hygienic
Floor Drain		AISI
316L		416662
NSF19.69
(500)		18.50
(470)		20.87
(530)		19.69
(500)		2.56
(65)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416657
NSF19.69
(500)		18.50
(470)		20.87
(530)		19.69
(500)		2.56
(65)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416663
NSF19.69
(500)		18.50
(470)		32.68
(830)		31.50
(800)		2.56
(65)		7.87
(200)		ACO 12"
Hygienic
Floor Drain
Drain		AISI
304		416658
NSF19.69
(500)		18.50
(470)		32.68
(830)		31.50
(800)		2.56
(65)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416664
NSF19.69
(500)		18.50
(470)		40.55
(1030)		39.37
(1000)		2.56
(65)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416659
NSF19.69
(500)		18.50
(470)		40.55
(1030)		39.37
(1000)		2.56
(65)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416665
NSF23.62
(600)		22.44
(570)		24.80
(630)		23.62
(600)		2.76
(70)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416666
NSF23.62
(600)		22.44
(570)		24.80
(630)		23.62
(600)		2.76
(70)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416669
NSF23.62
(600)		22.44
(570)		36.61
(930)		35.43
(900)		2.76
(70)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416667
NSF23.62
(600)		22.44
(570)		36.61
(930)		35.43
(900)		2.76
(70)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416670
NSF23.62
(600)		22.44
(570)		48.43
(1230)		47.24
(1200)		2.76
(70)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416668
NSF23.62
(600)		22.44
(570)		48.43
(1230)		47.24
(1200)		2.76
(70)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
316L		416671
NSF31.50
(800)		22.44
(570)		32.68
(830)		31.50
(800)		3.15
(80)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI
304		416672
NSF31.50
(800)		22.44
(570)		32.68
(830)		31.50
(800)		3.15
(80)		7.87
(200)		ACO 12"
Hygienic
Floor Drain		AISI 316L416673

Items shown with the NSF Mark has been tested and Certified by NSF International.NSF

BoxDrain Semi-Standard Products

Trough Semi-Standard

Hygienic BoxDrain Semi-Standard Articles

External (overall) width

Wo

in
(mm)		Internal (grate) width

Wi

in
(mm)		Length of Channel

Lo		Height at outlet of channel

H2

in
(mm)		Height at outlet of channel

H1 and H3 H2

in
(mm)
7.87
(200)		6.69
(170)		Variable2.36(60) - 7.87 (200)1.97 (50),
3.15 (80),
4.33 (110),
5.51 (140)4.33 (110)
11.81
(300)		10.63
(270)		Variable2.36(60) - 7.87 (200)1.97 (50),
3.15 (80),
4.33 (110),
5.51 (140)
15.75
(400)		14.57
(370)		Variable2.36(60) - 7.87 (200)1.97 (50),
3.15 (80),
4.33 (110),
5.51 (140)
19.69
(500)		18.50
(470)		Variable2.36(60) - 7.87 (200)1.97 (50),
3.15 (80),
4.33 (110),
5.51 (140)
23.62
(600)		22.44
(570)		Variable2.36(60) - 7.87 (200)1.97 (50),
3.15 (80),
4.33 (110),
5.51 (140)
31.50
(800)		30.31
(770)		Variable2.36(60) - 7.87 (200)1.97 (50),
3.15 (80),
4.33 (110),
5.51 (140)

BoxDrain Grates BoxDrain Accessories Customization BoxDrain in Catalog
