ACO Modular 200 | Grates & Accessories
Product Features
- Fully tested and classified to EN 1433
- Available in AISI 304 or AISI 316L grades of stainless steel
- Special length 11.81” [300 mm] for branches and corner units
- Slip resistant grates available for added user safety
- Load class A 15, B 125 and C 250 options available
- Full pickle passivated

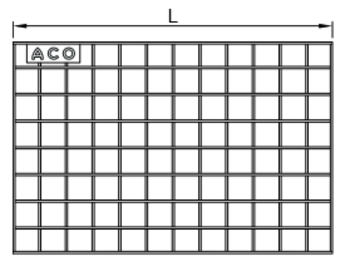

Mesh Grate
| Length L in (mm) | Slip Resistant | Load Class | Material | Part No. |
|---|---|---|---|---|
| 11.81 (300) | Yes | A 15 | AISI 304 | 414140 |
| 11.81 (300) | Yes | A 15 | AISI 316L | 414190 |
| 19.67 (500) | Yes | A 15 | AISI 304 | 92200 |
| 19.67 (500) | Yes | A 15 | AISI 316L | 92250 |
| 39.37 (1000) | Yes | A 15 | AISI 304 | 92201 |
| 39.37 (1000) | Yes | A 15 | AISI 316L | 92251 |

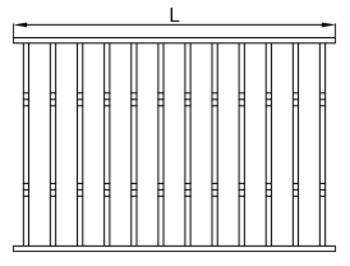

Ladder Grate
| Length L in (mm) | Load Class | Slip Resistant | Material | Part No. |
|---|---|---|---|---|
| 11.81 (300) | C 250 | Yes | AISI 304 | 414142 |
| 11.81 (300) | C 250 | Yes | AISI 316L | 414192 |
| 19.69 (500) | C 250 | Yes | AISI 304 | 92214 |
| 19.69 (500) | C 250 | Yes | AISI 316L | 92264 |
| 39.37 (1000) | C 250 | Yes | AISI 304 | 92215 |
| 39.37 (1000) | C 250 | Yes | AISI 316L | 92265 |

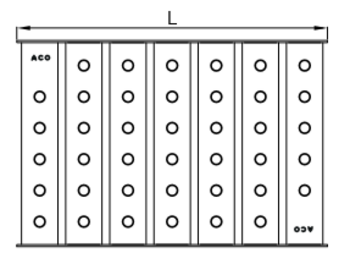

Multi-Slot 5 Grate
| Length L in (mm) | Load Class | Slip Resistant | Material | Part No. | |
|---|---|---|---|---|---|
 | 11.81 (300) | B 125 | No | AISI 304 | 414145 |
| 11.81 (300) | B 125 | No | AISI 316L | 414195 |
| 19.69 (500) | B 125 | No | AISI 304 | 409292 |
| 19.69 (500) | B 125 | No | AISI 316L | 409293 |
| 39.37 (1000) | B 125 | No | AISI 304 | 409288 |
| 39.37 (1000) | B 125 | No | AISI 316L | 409289 |
| 19.69 (500) | B 125 | Yes | AISI 304 | 409296 |
| 19.69 (500) | B 125 | Yes | AISI 316L | 409297 |
| 39.37 (1000) | B 125 | Yes | AISI 304 | 409240 |
| 39.37 (1000) | B 125 | Yes | AISI 316L | 409241 |
Accessories
| Description | Used with | Material | Part No. |
|---|---|---|---|
| Silt Basket (Stainless Steel) | ACO Modular 200 with 5.59 (142) outlet | AISI 304 | 408202 |
| Silt Basket (Stainless Steel) | ACO Modular 200 with 5.59 (142) outlet | AISI 316L | 408212 |
| Silt Basket (Stainless Steel) | ACO Modular 200 with 7.87 (200) outlet | AISI 304 | 408222 |
| Silt Basket (Stainless Steel) | ACO Modular 200 with 7.87 (200) outlet | AISI 316L | 408232 |
