ACO Slot Drain Portfolio
The ACO Slot Drain Range is suitable for all common applications and all common floor types. Selecting a channel from the slot drainage range is easy. The unique variability of the whole portfolio allows choosing the right channel according to all customers' needs. Channel's length, depth and outlet position are just a few of the parameters which can be varied, and regardless of the variations specified, there is usually little or no impact on delivery lead times.
ACO Slot Drain Ordering
The dimensions of the ACO Slot Drains can be easily specified to the exact project requirements. To specify the channel please use the Specification template which will help you identify the information needed or contact our Sales/Technical department.
ACO Slot Drain Customization
ACO offers you full customisation of your slot drainage solution, typically making the most of the maximum number of components within your drainage system layout. In addition all ACO slot drains can be designed with:
- Custom outlet position
- Custom depth
- Custom slope
- Custom slot drain width
- L-shape and T-shape layout
- Custom side inlets
To request custom ACO Slot Drain, please contact our Sales/technical department.
ACO Slot Drain - Semi-Standard Product Features
The dimensions of the ACO Slot Drain for concrete, tiles and resin floor can be easily specified to meet exact project requirements.
- Tested and certified according to EN 1253 and EN 1443
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel, pickled and passivated
- ACO Slot Drain 8 or 20 mm wide
- Length - up to customer request
- Longitudinal slopes of the channel bottom 1% to 5%
- Standardized widths
- Outlet position central or variable along length
- Adjustable levelling feet
- Installation anchors for securing into concrete
| External (overall) width Wl (mm) | Dimension of edge A (mm) | Length of channel Lo | Height at outlet of channel H2 | Height at end of channel H1 and H3 |
|---|---|---|---|---|
| 20 | 15 | Variable* | 50-200 | 50-200 |
| 8 | folded | Variable* | 50-200 | 50-200 |
ACO Slot Drain - Customized Slot Channel Product Features
The dimensions of the ACO customized slot channel for concrete, tiles, and resin floor can be easily specified to accommodate project requirements.
- Tested and certified according to EN 1253
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Slot dimension channel of 8 or 20
- Length - up to customer request
- Fully pickled and passivated
- Longitudinal slopes of the channel bottom 1% - 5%
- Outlet position central or variable along length
- Adjustable Easy fix leveling feet
- Protective covers available for gully tops
- Installation anchors for securing into concrete

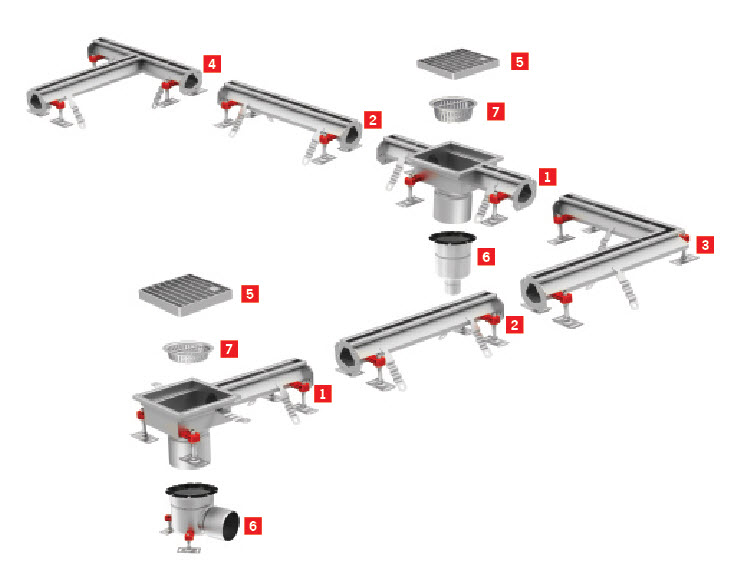

ACO Modular Slot Drain System

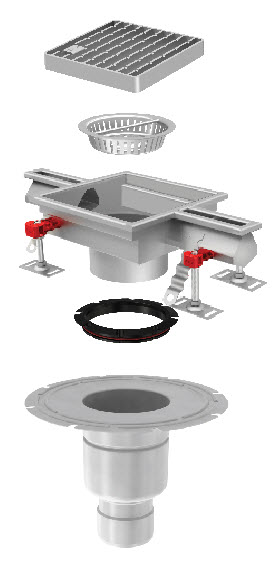

Outlet Unit
Level invert and sloping sections
Corner Unit
Branch Unit
Grating
Floor Drain
Silt Basket
Please contact us for more details or questions.
