ACO Semi-Standard Product Features

The dimensions of the ACO Hygienic Floor Trench for concrete, tiles and resin floor can be easily specified to meet exact project requirements.

  • Hygienic design following EN 1672, EN ISO 14159, EHEDG document No. 8, 13, 44 and NSF/ANSI 3-A 14159-1-2010
  • Available in AISI 304 or AISI 316L grades of stainless steel
  • Fully pickled and passivated
  • Minimal longitudal slope 1%
  • Min. cross sectional slope 5%
  • V-shape bottom for width < 11.81"
  • Reinforced bottom for width over 11.81"
  • Rubber edge infill
  • Rounded corners 1/8" or larger
  • Easy and secure adjustable connection with floor drain
  • Hygienic gratings with slip resistance
  • Adjustable leveling feet 2.36" - 4.33"
  • Installation anchors for securing into concrete

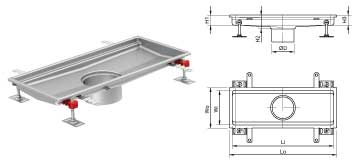

ACO BoxDrain Semi-Standard Products

External (overall) width (in/
mm)
Internal (grate) width(in/
mm)
Length of Channel

Lo
Height at outlet of channel H2 (in)Height at outlet of channel H2 (mm)H1 and H3 H2 (in)H1 and H3 H2 (mm)
7.87/2006.69/170Variable1.97-7.8750-2001,97, 3,15,
4,33,
5,51
50, 80, 110, 140
11.81/30010.63/270Variable1.97-7.8750-2001,97, 3,15,
4,33,
5,51
50, 80, 110, 140
15.75/40014.57/370Variable1.97-7.8750-2001,97, 3,15,
4,33,
5,51
50, 80, 110, 140

19.69/500
18.50/470Variable1.97-7.87
50-200
1,97, 3,15,
4,33,
5,51
50, 80, 110, 140

23.62/600
22.44/570Variable1.97-7.8750-2001,97, 3,15,
4,33,
5,51
50, 80, 110, 140
31.50/80030.31/770Variable1.97-7.8750-2001,97, 3,15,
4,33,
5,51
50, 80, 110, 140
