Accessories for ACO BoxDrain

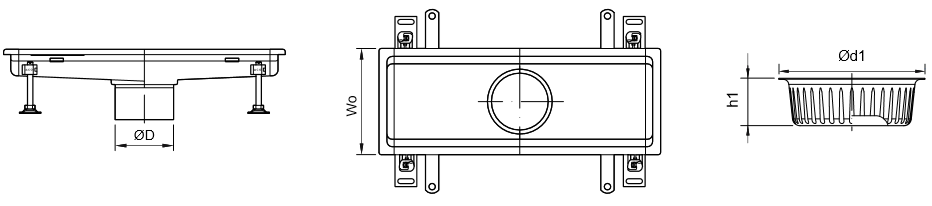

| Channel Dimension Outlet Size ∅D in (mm) | Channel Dimension Outlet Size ∅D in (mm) | Direction of Floor Drain Outlet | Silt basket dimension ∅D1 in (mm) | Silt basket dimension h1 in (mm) | Material | Part No. |
|---|---|---|---|---|---|---|
| 4.92 (125) | ACO 8" Hygienic Floor Drain | Vertical, Horizontal | 5.59 (142) | 1.77 (45) | AISI 304 | 416900 |
| 4.92 (125) | ACO 8" Hygienic Floor Drain | Vertical, Horizontal | 5.59 (142) | 1.77 (45) | AISI 316L | 416901 |
| 5.59 (142) | ACO 10" Hygienic Floor Drain | Vertical, Horizontal | 5.59 (142) | 1.77 (45) | AISI 304 | 416900 |
| 5.59 (142) | ACO 10" Hygienic Floor Drain | Vertical, Horizontal | 5.59 (142) | 1.77 (45) | AISI 316L | 416901 |
| 7.87 (200) | ACO 12" Hygienic Floor Drain | Vertical, Horizontal | 5.59 (142) | 1.96 (50) | AISI 304 | 416908 |
| 7.87 (200) | ACO 12" Hygienic Floor Drain | Vertical, Horizontal | 5.59 (142) | 1.96 (50) | AISI 316L | 416909 |
* Note: If FAT is to be used, please contact ACO Technical support to ensure compatibility.
