ACO FloorDrain

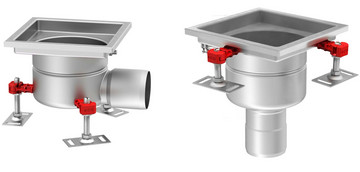

Vertical and Horizontal Solutions
Vertical and Horizontal Solutions 1. Grates 2. Silt Basket 3. Optional foul air trap 4. Standard foul air trap support 5. ACO Floor Drain body - horizontal outlet 6. Floor drain top 7. Friction ring 8. ACO EasyFix leveling feet 9. ACO Floor Drain body - vertical outlet

ACO hygienic drainage uses stainless steel floor drains to fulfil the strongest hygienic requirements to prevent bacterial contamination. We apply hygienic design principles reserved for food processing equipment (EHEDG document No. 8, 13 and 44) to the commercial kitchen and restaurant floor drain design and NSF/ANSI 3-A 14159-1-2014.

ACO Hygienic Floor Drain Features:

  • Full drainability
  • Internal radii equal or larger than 1/8 inch (3 mm), increasing cleaning effectiveness
  • Hygienic joints
  • Edge infill
  • Stainless steel grade min. 304 according to AISI
  • Fully pickle passivated
  • A deep-drawn body ensures smooth contours eliminating crevices that can harbor bacteria
  • Connects seamlessly with surrounding floor
  • Maintained easily
  • Corrosion-resistant
  • Slip resistant grates

ACO Floor Drain range is available in a number of versions featuring different grates, sizes and vertical or horizontal outlet options to suit various applications and flow requirements.

The floor construction and depth together with the use of any waterproofing membrane play an important role in the selection of the appropriate type of floor drain.

Fixed height floor drains are convenient and free-standing units which are suitable for cementitious, resin or tiled floors.

Adjustable drains can be installed either with a floor drain top or ACO trench drain in most flooring constructions, including floors with waterproofing membranes.

Fixed Height Veritcal Floor Drains

Fixed Height - Vertical Outlet

Top Size
in (mm)		Outlet Diameter
∅
in (mm)		MaterialPart No.


ACO 8"
Hygienic
Floor Drain



8" x 8" (200 x 200 mm)2"
Sch 10
(60 mm)		AISI 304445238
NSFAISI 316L445274
8" x 8" (200 x 200 mm)4"
Sch 10
(114 mm)		AISI 304445240
NSFAISI 316L445276

Items shown with the NSF Mark have been tested and Certified by NSF International.NSF

Fixed Height Horizontal Floor Drain

Fixed Height - Horizontal Outlet

Top Size
in (mm)		Outlet Diameter
∅
in (mm)		MaterialPart No.
NSF

ACO 8"
Hygienic
Floor Drain

8" x 8" (200 x 200 mm)2"
Sch 10
(60 mm)		AISI 304445242
NSFAISI 316L445278
NSF8" x 8" (200 x 200 mm)4"
Sch 10
(114 mm)		AISI 304445244
NSFAISI 316L445280

Items shown with the NSF Mark have been tested and Certified by NSF International.NSF

Fixed Floor Drain Top

Floor drain top size
in (mm)		MaterialPart No.
NSF8" x 8" (200 x 200 mm)AISI 304414732
NSFAISI 316L414832

NSF Items shown with the NSF Mark have been tested and Certified by NSF International

Adjustable - Vertical Outlet

Floor DrainType of FlangeOutlet Diameter
∅
in (mm)		MaterialPart No.
NSFACO 8" Hygienic Floor DrainLocation Flange2"
Sch 10
(60 mm)		AISI 304445246
NSFACO 8" Hygienic Floor DrainLocation Flange2"
Sch 10
(60 mm)		AISI 316L445282
NSFACO 8" Hygienic Floor DrainLocation Flange2"
Sch 10
(60 mm)		AISI 304445250
NSFACO 8" Hygienic Floor DrainLocation Flange2"
Sch 10
(60 mm)		AISI 316L445286

NSF Items shown with the NSF Mark have been tested and Certified by NSF International

Adjustable - Horizontal Outlet

Floor DrainType of FlangeOutlet Diameter
∅
in (mm)		MaterialPart No.
NSFACO 8" Hygienic Floor DrainLocation Flange2"
Sch 10
(60 mm)		AISI 304445258
NSFACO 8" Hygienic Floor DrainLocation Flange2"
Sch 10
(60 mm)		AISI 316L445294
NSFACO 8" Hygienic Floor DrainMechanical Clamping Flange2"
Sch 10
(60 mm)		AISI 304445262
NSFACO 8" Hygienic Floor DrainMechanical Clamping Flange2"
Sch 10
(60 mm)		AISI 316L445298
NSFACO 8" Hygienic Floor DrainLocation Flange4"
Sch 10
(101.6 mm)		AISI 304445264
NSFACO 8" Hygienic Floor DrainLocation Flange4"
Sch 10
(101.6 mm)		AISI 316L445300
NSFACO 8" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(101.6 mm)		AISI 304445268
NSFACO 8" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(101.6 mm)		AISI 316L445304
NSFACO 8" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 304445252
NSFACO 8" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 316L445288
NSFACO 8" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 304445256
NSFACO 8" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 316L445292

NSF Items shown with the NSF Mark have been tested and Certified by NSF International

Adjustable Floor Drain Top

Floor Drain Top SizeMaterialPart No.
8" x 8" (200 x 200 mm)AISI 304414732
Fixed Height Hygienic Floor Drains

Fixed Height - Vertical Outlet

Top Size
in (mm)		Outlet Diameter
∅
in (mm)		MaterialPart No.
ACO 10"
Hygienic
Floor Drain		10" x 10" (250 x 250 mm)3"
Sch 10(76.2 mm)		AISI 304445114
ACO 10"
Hygienic
Floor Drain		AISI 316L445180
ACO 10"
Hygienic
Floor Drain		4"
Sch 10(101.6 mm)		AISI 304445116
4"
Sch 10(101.6 mm)		AISI 316L445182

Items shown with the NSF Mark have been tested and Certified by NSF International.NSF

Fixed Height - Horizontal Outlet

Top Size
in (mm)		Outlet Diameter
∅
in (mm)		MaterialPart No.
ACO 10"
Hygienic
Floor Drain		10" x 10" (250 x 250 mm)3"
Sch 10(76.2 mm)		AISI 304445118
ACO 10"
Hygienic
Floor Drain		AISI 316L445184
ACO 10"
Hygienic
Floor Drain		4"
Sch 10(101.6 mm)		AISI 304445120
ACO 10"
Hygienic
Floor Drain		AISI 316L445186

Items shown with the NSF Mark have been tested and Certified by NSF International.NSF

Fixed Floor Drain Top

Floor drain top size
in in (mm)		MaterialPart No.
NSF10" x 10" (250 x 250 mm)AISI 304408248
NSF10" x 10" (250 x 250 mm)AISI 316408258

NSF Items shown with the NSF Mark have been tested and Certified by NSF International.

Floor Drain Type of FlangeOutlet Diameter
∅
in (mm)		MaterialPart No.
NSFACO 10" Hygienic Floor DrainLocation Flange3"
Sch 10
(89 mm)		AISI 304445123
NSFACO 10" Hygienic Floor DrainLocation Flange3"
Sch 10
(89 mm)		AISI 316445189
NSFACO 10" Hygienic Floor DrainMechanical Clamping Flange3"
Sch 10
(89 mm)		AISI 304445127
NSFACO 10" Hygienic Floor DrainMechanical Clamping Flange3"
Sch 10
(89 mm)		AISI 316445193

NSFItems shown with the NSF Mark have been tested and Certified by NSF International.

Adjustable - Horizontal Outlet

Floor DrainType of FlangeOutlet Diameter
∅
in (mm)		MaterialPart No.
NSFACO 10" Hygienic Floor DrainLocation flange3"
Sch 10
(89 mm)		AISI 304445147
NSFACO 10" Hygienic Floor DrainLocation flange3"
Sch 10
(89 mm)		AISI 316445213
NSFACO 10" Hygienic Floor DrainMechanical clamping flange3"
Sch 10
(89 mm)		AISI 304445151
NSFACO 10" Hygienic Floor DrainMechanical clamping flange3"
Sch 10
(89 mm)		AISI 316445217
NSFACO 10" Hygienic Floor DrainLocation flange4"
Sch 10
(114 mm)		AISI 304445153
NSFACO 10" Hygienic Floor DrainLocation flange4"
Sch 10
(114 mm)		AISI 316445219
NSFACO 10" Hygienic Floor DrainMechanical clamping flange4"
Sch 10
(114 mm)		AISI 304445157
NSFACO 10" Hygienic Floor DrainMechanical clamping flange4"
Sch 10
(114 mm)		AISI 316445223

NSF Items shown with the NSF Mark have been tested and Certified by NSF International.

Adjustable Floor Drain Top

Floor Drain Top SizeMaterialPart No.
NSF10" x 10" (250 x 250 mm)AISI 304408248
NSF10" x 10" (250 x 250 mm)AISI 316414258

NSFItems shown with the NSF Mark have been tested and Certified by NSF International.

Fixed Height Hygienic Floor Drains

Fixed Height - Vertical Outlet

Top Size
in (mm)		Outlet Diameter
∅
in (mm)		MaterialPart No.
NSFACO 12"
Hygienic
Floor Drain		12" x 12" (300 x 300 mm)4"
Sch 10
(114 mm)		AISI 304445104
NSFACO 12"
Hygienic
Floor Drain		12" x 12" (300 x 300 mm)4"
Sch 10
(114 mm)		AISI 316L445170
NSFACO 12"
Hygienic
Floor Drain		12" x 12" (300 x 300 mm)6"
Sch 10
(168 mm)		AISI 304445106
NSFACO 12"
Hygienic
Floor Drain		12" x 12" (300 x 300 mm)6"
Sch 10
(168 mm)		AISI 316L445172

Items shown with the NSF Mark have been tested and Certified by NSF International.NSF

Fixed Height - Horizontal Outlet

Top Size
in (mm)		Outlet Diameter
∅
in (mm)		MaterialPart No.
ACO 12"
Hygienic
Floor Drain		12" x 12" (300 x 300 m)4"
Sch 10(101.6 mm)		AISI 304445112
ACO 12"
Hygienic
Floor Drain		12" x 12" (300 x 300 m)4"
Sch 10(101.6 mm)		AISI 316L445178

Items shown with the NSF Mark have been tested and Certified by NSF International.NSF

Fixed Floor Drain Top

Floor drain top size
in in (mm)		MaterialPart No.
NSF12" x 12" (300 x 300 mm)AISI 304408228
NSF12" x 12" (300 x 300 mm)AISI 316408238

NSF Items shown with the NSF Mark have been tested and Certified by NSF International.

Adjustable - Vertical Outlet

Floor DrainType of FlangeOutlet Diameter
∅
in (mm)		MaterialPart No.
NSFACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 304445195
NSFACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 316445195
NSFACO 12" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 304445133
NSFACO 12" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 316445199
ACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 304445201
NSFACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 316445135
NSFACO 12" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 304445139
NSFACO 12" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 316445205
NSFACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 304445159
NSFACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 316445225
NSFACO 12" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 304445163
NSFACO 12" Hygienic Floor DrainMechanical Clamping Flange4"
Sch 10
(114 mm)		AISI 316445229
NSFACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 304445135
NSFACO 12" Hygienic Floor DrainLocation Flange4"
Sch 10
(114 mm)		AISI 316445201
NSFACO 12" Hygienic Floor DrainLocation Flange6"
Sch 10
(114 mm)		AISI 304445141
NSFACO 12" Hygienic Floor DrainLocation Flange6"
Sch 10
(114 mm)		AISI 316445207
NSFACO 12" Hygienic Floor DrainMechanical clamping flange6"
Sch 10
(114 mm)		AISI 304445145
NSFACO 12" Hygienic Floor DrainMechanical clamping flange6"
Sch 10
(114 mm)		AISI 316445211

NSF Items shown with the NSF Mark have been tested and Certified by NSF International.

Adjustable - Horizontal Outlet

Floor DrainType of FlangeOutlet Diameter
∅
in (mm)		MaterialPart No.
NSFACO 12" Hygienic Floor DrainLocation flange4"
Sch 10
(114 mm)		AISI 304445159
NSFACO 12" Hygienic Floor DrainLocation flange4"
Sch 10
(114 mm)		AISI 316L445225
NSFACO 12" Hygienic Floor DrainMechanical clamping flange4"
Sch 10
(114 mm)		AISI 304445163
NSFACO 12" Hygienic Floor DrainMechanical clamping flange4"
Sch 10
(114 mm)		AISI 316L445229

NSF Items shown with the NSF Mark have been tested and Certified by NSF International.

Adjustable Floor Drain TopMaterialPart No.
NSF12" x 12" (300 x 300 mm)AISI 304408228
NSF12" x 12" (300 x 300 mm)AISI 316L408238

NSFItems shown with the NSF Mark have been tested and Certified by NSF International.
