ACO Modular 125 | Grates & Accessories

Product Features

  • Fully tested and classified to EN 1433
  • Available in AISI 304 or AISI 316L grades of stainless steel
  • Special length of 14.76" (375 mm) for branches and corner units
  • Load classes A 15, B 125 and C 250
  • Custom grate options available up to load class E 600

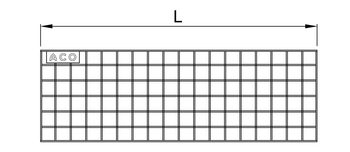

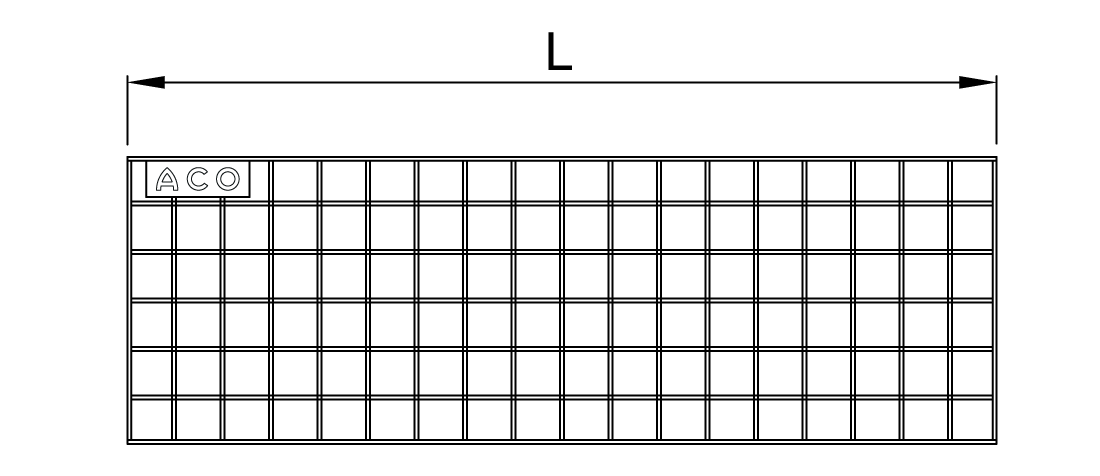

Mesh Grate

Length L
in (mm)
Slip ResistantLoad ClassMaterialPart No.
Oops, an error occurred! Code: 20181215172024d3d4712814.76 (375)YesA 15AISI 304414130
Oops, an error occurred! Code: 201812151720240120e29a14.76 (375)YesA 15AISI 316L414180
14.76 (375)YesC 250AISI 304414131
14.76 (375)YesC 250AISI 316L414181
Oops, an error occurred! Code: 201812151720246813055319.69 (500)YesA 15AISI 30421710
Oops, an error occurred! Code: 201812151720245e06a00c19.69 (500)YesA 15AISI 316L21715
19.69 (500)YesC 250AISI 30421910
19.69 (500)YesC 250AISI 316L21915
Oops, an error occurred! Code: 20181215172024f188550539.37 (1000)YesA 15AISI 30421610
Oops, an error occurred! Code: 2018121517202495fbe05739.37 (1000)YesA 15AISI 316L21615
39.37 (1000)YesC 250AISI 30421810
39.37 (1000)YesC 250AISI 316L21815

 Oops, an error occurred! Code: 2018121517202475e2de12Meet all ADA requirements and provide wheelchair accessibility to the handicapped and disabled.

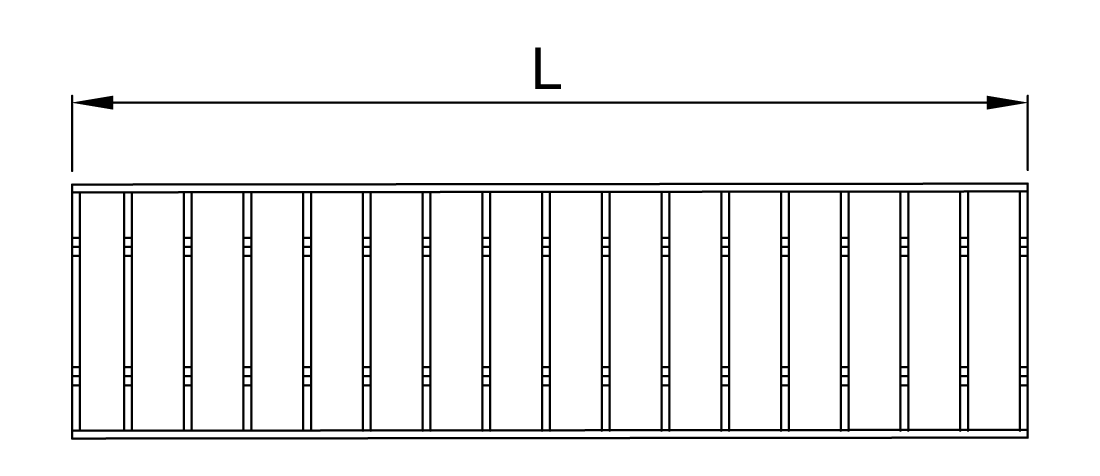

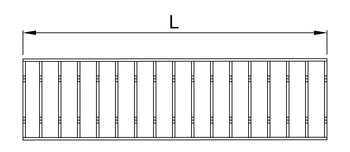

Ladder Grate

Length L
in (mm)
Load ClassSlip ResistantMaterialPart No.
14.76 (375)C 250YesAISI 304414134
14.76 (375)C 250YesAISI 316L414184
19.69 (500)C 250YesAISI 30421740
19.69 (500)C 250YesAISI 316L21745
39.37 (1000)C 250YesAISI 30421741
39.37 (1000)C 250YesAISI 316L21746

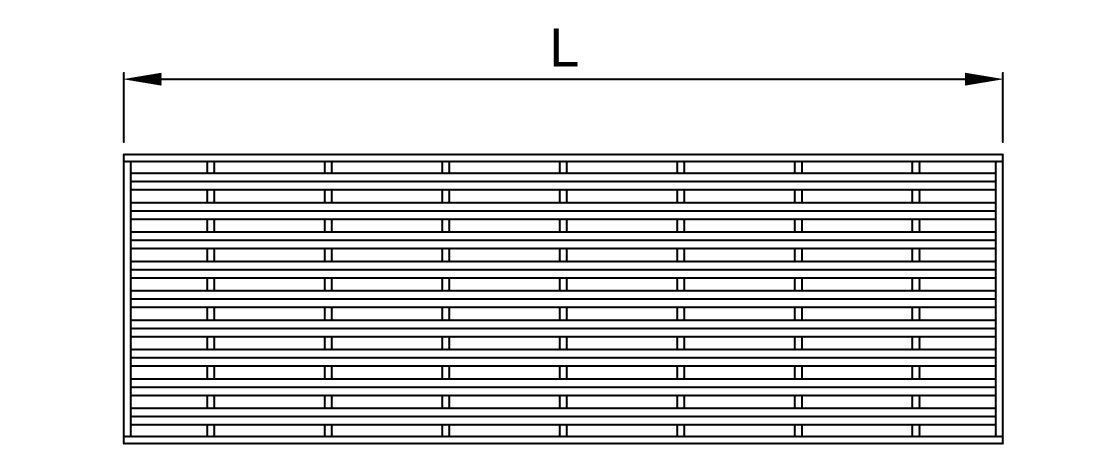

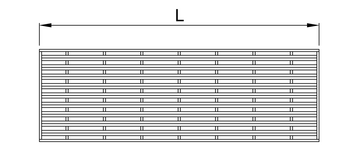

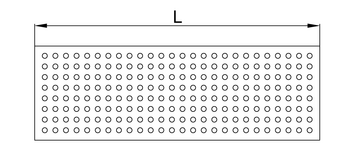

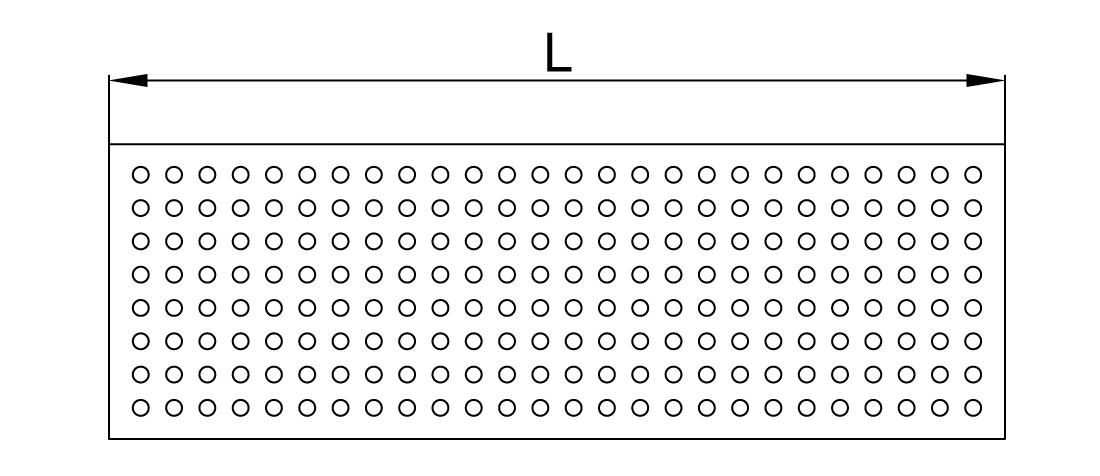

Heelsafe Grate

Length L
in (mm)
Load ClassSlip ResistantMaterialPart No.
Oops, an error occurred! Code: 2018121517202443cb64d114.76 (375)B 125NoAISI 304414135
Oops, an error occurred! Code: 201812151720242787e06714.76 (375)B 125NoAISI 316L414185
Oops, an error occurred! Code: 20181215172024c5c4540419.69 (500)B 125NoAISI 30496819
Oops, an error occurred! Code: 201812151720241ee6fd4219.69 (500)B 125NoAISI 316L401238
Oops, an error occurred! Code: 2018121517202436ea4e3e39.37 (1000)B 125NoAISI 30496818
Oops, an error occurred! Code: 2018121517202456d2e63d39.37 (1000)B 125NoAISI 316L401237

 Oops, an error occurred! Code: 201812151720240eca807bMeet all ADA requirements and provide wheelchair accessibility to the handicapped and disabled.

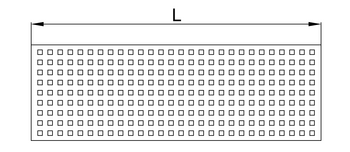

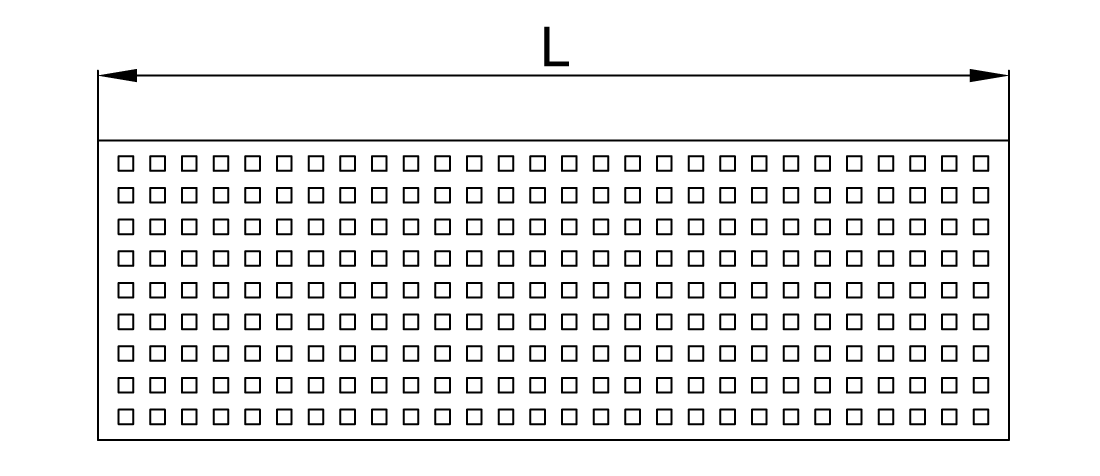

Quadrato Grate

Length L
in (mm)
Load ClassSlip ResistantMaterialPart No.
Oops, an error occurred! Code: 201812151720246ba83d6514.76 (375)A 15NoAISI 304414138
Oops, an error occurred! Code: 201812151720248b12b48d14.76 (375)A 15NoAISI 316L414188
Oops, an error occurred! Code: 201812151720242d93467a19.69 (500)A 15NoAISI 304105528
Oops, an error occurred! Code: 20181215172024ae10becc19.69 (500)A 15NoAISI 316L407925
Oops, an error occurred! Code: 201812151720243940b77939.37 (1000)A 15NoAISI 304105527
Oops, an error occurred! Code: 20181215172024a408069d39.37 (1000)A 15NoAISI 316L407924

 Oops, an error occurred! Code: 201812151720242046d093Meet all ADA requirements and provide wheelchair accessibility to the handicapped and disabled.

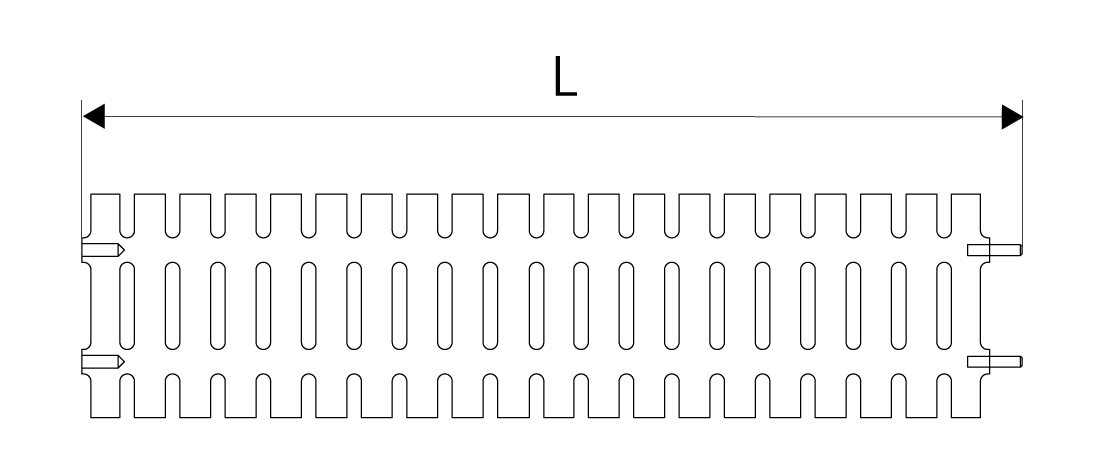

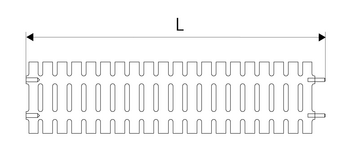

Plastic Grate

Length L
in (mm)
Load ClassSlip ResistantMaterialPart No.
19.69 (500)A 15NoPlastic21790
39.37 (1000)A 15NoPlastic21690

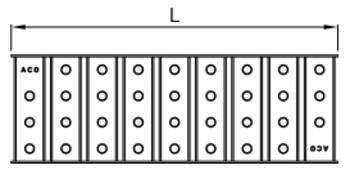

Multi-Slot 5 Grate

Length L
in (mm)
Load ClassSlip ResistantMaterialPart No.
Oops, an error occurred! Code: 20181215172024b02b484914.75 (375)B 125YesAISI 304414139
Oops, an error occurred! Code: 20181215172024e7db74ba14.75 (375)B 125YesAISI 316L414189
Oops, an error occurred! Code: 2018121517202420b07d6419.69 (500)B 125YesAISI 304409290
Oops, an error occurred! Code: 201812151720245fa13d9d19.69 (500)B 125YesAISI 316L409291
Oops, an error occurred! Code: 201812151720244720f37219.69 (500)B 125YesAISI 304409294
Oops, an error occurred! Code: 201812151720249ba6788619.69 (500)B 125YesAISI 316L409295
Oops, an error occurred! Code: 201812151720244bf3d05639.37 (1000)B 125YesAISI 304409236
Oops, an error occurred! Code: 20181215172024d11d6d8c39.37 (1000)B 125YesAISI 316L409237
Oops, an error occurred! Code: 20181215172024fac06a8c19.69 (500)B 125YesAISI 304409294
Oops, an error occurred! Code: 20181215172024075963ea19.69 (500)B 125YesAISI 316L409295
Oops, an error occurred! Code: 20181215172024096b075639.37 (1000)B 125YesAISI 304409236
Oops, an error occurred! Code: 201812151720243c5b895039.37 (1000)B 125YesAISI 316L409237
Oops, an error occurred! Code: 201812151720248c63429d39.37 (1000)B 125YesAISI 304409286
Oops, an error occurred! Code: 2018121517202466869f2339.37 (1000)B 125YesAISI 316L409287

 Oops, an error occurred! Code: 2018121517202440f0a36eMeet all ADA requirements and provide wheelchair accessibility to the handicapped and disabled.

Accessories

DescriptionUsed withMaterialPart No.
Sieve (Stainless Steel)ACO Modular 125 with outlet 110 mmAISI 30497235
Sieve (Stainless Steel)ACO Modular 125 with outlet 110 mmAISI 316L97285
Silt Basket (Stainless Steel)ACO Modular 125 with outlet 125 and 142 mmAISI 304414339
Silt Basket (Stainless Steel)ACO Modular 125 with outlet 125 and 142 mmAISI 316L414340
