ACO Hygienic Floor Drain Grates

Variety of grates are available depending on application and requested load class. For applications with high hygienic demands a ladder grate or cast grate should be selected.

Product Features

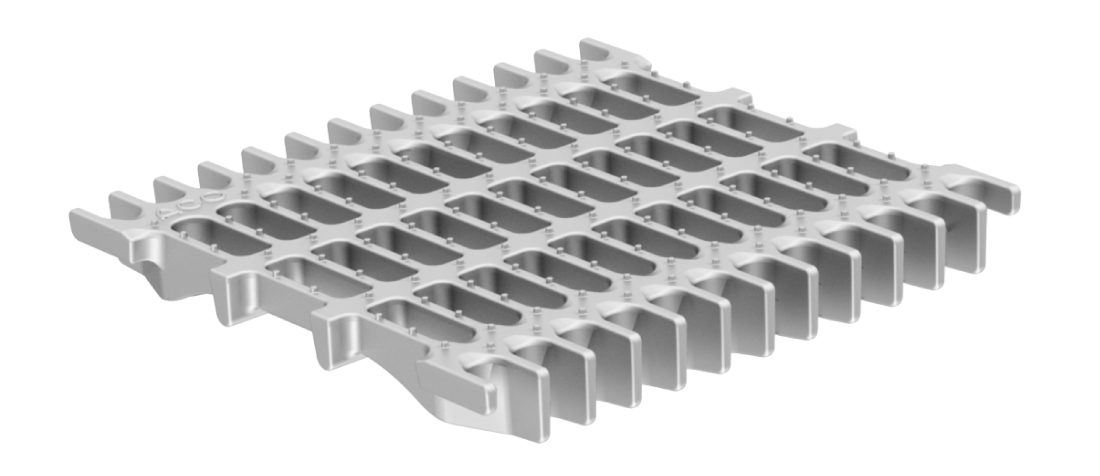

ACO Hygienic Cast Grate

  • Hygienic design following EHEDG document No. 8, 13, 44 and NSF/ANSI 3-A 14159-1-2014
  • ACO hygienic cast grates with slip resistant finish
  • Frameless design for optimum drainability and cleanibility
  • Surface electropolished
  • Easy to clean grates

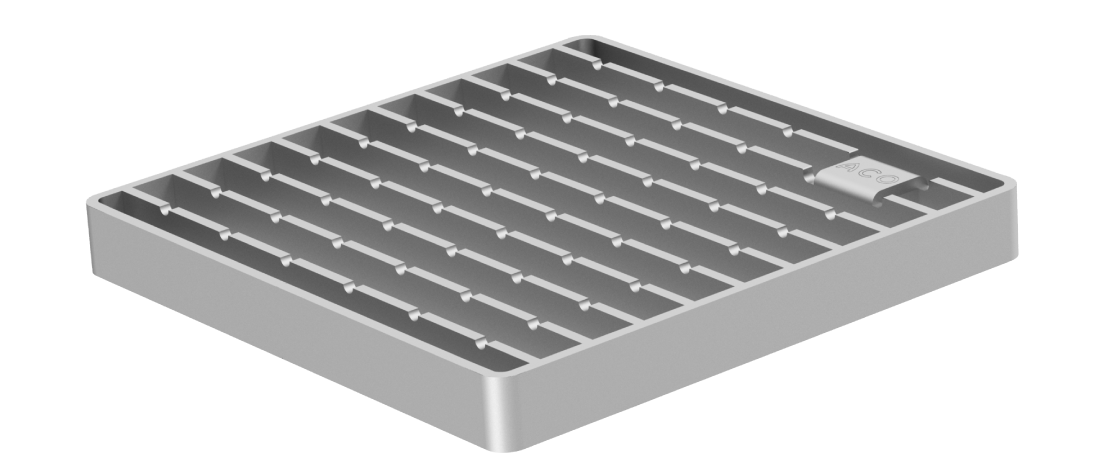

ACO Hygienic Ladder Grate

  • ACO hygienic Ladder grate with slip resistant finish
  • Hygienic design following EHEDG document No. 8, 13, 44 and NSF/ANSI 3-A 14159-1-2014
  • Surface electropolished
  • Easy to clean grates
  • Slip resistant

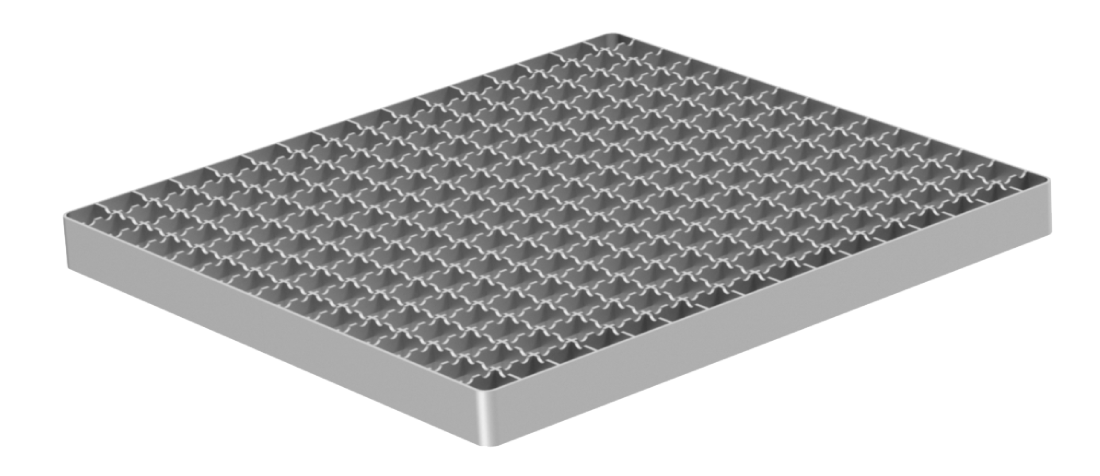

ACO Hygienic Mesh Grate

  • ACO Mesh grate with slip resistant finish
  • Surface electropolished
  • Rounded corners

ACO Hygienic Floor Drain Grates

8"

ACO Hygienic Cast Grate - 8" x 8"

Load ClassSlip ResistantMaterialPart Number
8" Hygienic Cast GrateSpecial DutyYesAISI 304416942*

Note: Surface electropolished.

ACO Hygienic Ladder Grate - 8" x 8"

Load ClassSlip Resistant MaterialPart Number
8" Ladder GrateLight DutyYesAISI 304416912*
Light DutyYesAISI 316L416913*
Medium DutyYesAISI 304408093*
Medium DutyYesAISI 316L408193*
Heavy DutyNoAISI 304408043*
Heavy DutyNoAISI 316L408143*

Note: Surface electropolished.

ACO Hygienic Mesh Grate - 8" x 8"

Load ClassSlip ResistantMaterialPart Number
8" Mesh GrateMedium DutyYesAISI 304408090
Medium DutyYesAISI 316L408190

Note: Surface electropolished.

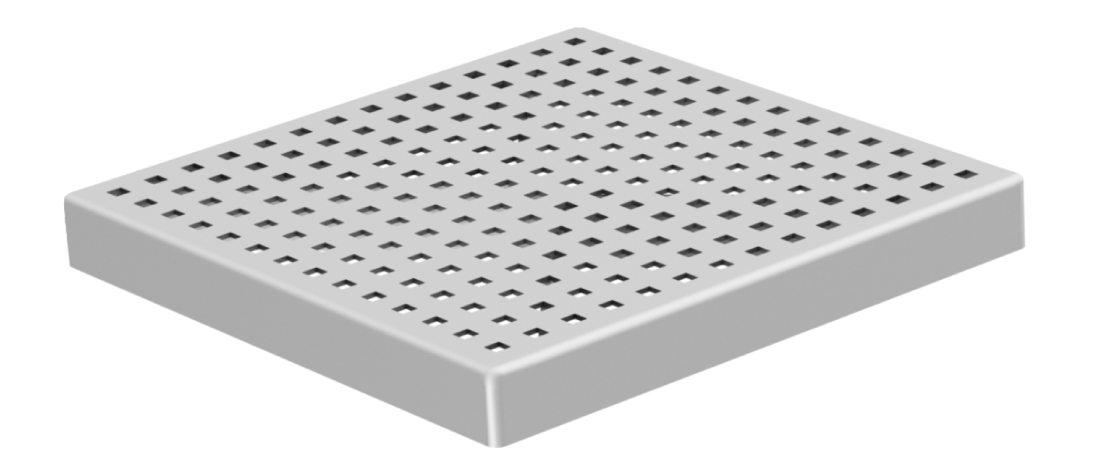

ACO Hygienic Quadrato Grate - 8" x 8"

Load ClassSlip ResistantMaterialPart Number
8" Quadrato GrateLight DutyNoAISI 304408092
Light DutyNoAISI 316L408192

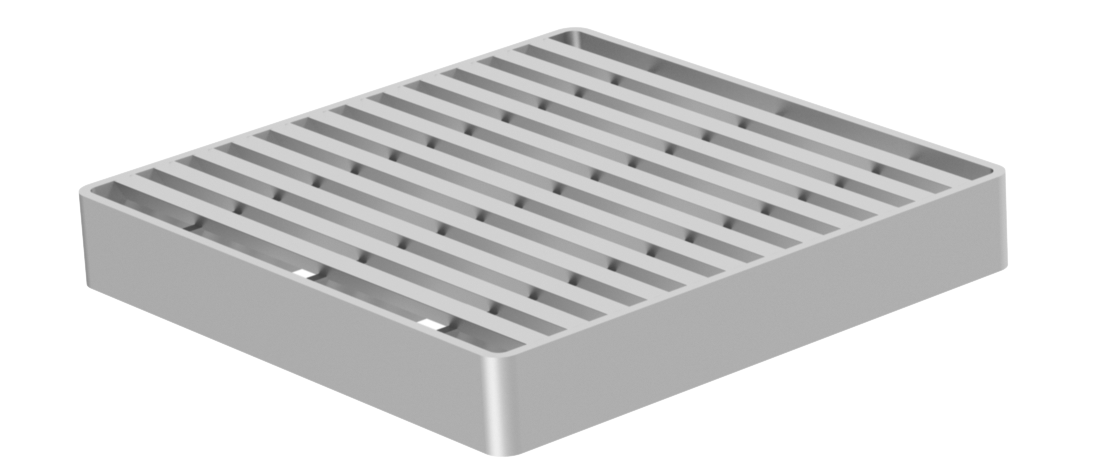

ACO Heelsafe Grate - 8" x 8"

Load ClassSlip ResistantMaterialPart Number
8" Heelsafe GrateMedium DutyNoAISI 304408022
Medium DutyNoAISI 316L408122

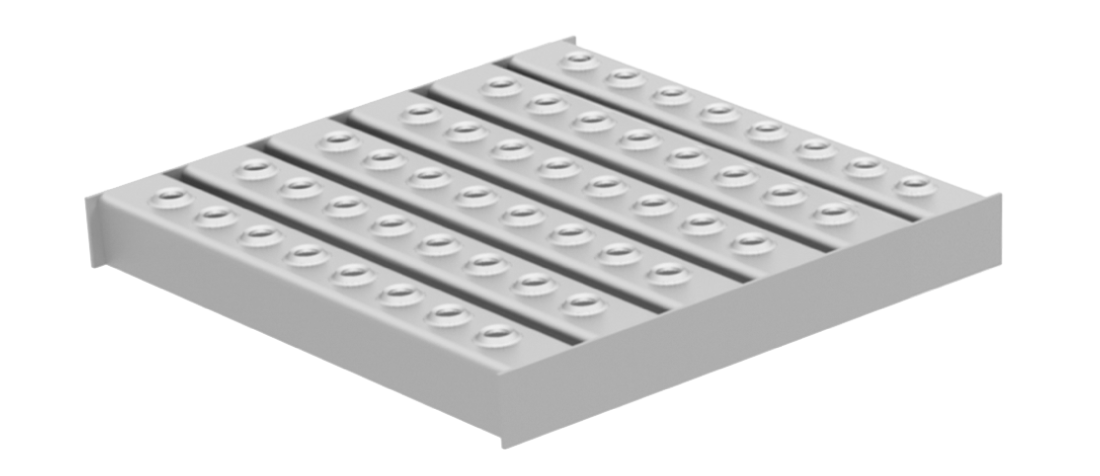

ACO Multi-Slot 5 Grate - 8" x 8"

Load ClassSlip ResistantMaterialPart Number
8" Multi-Slot 5 GrateMedium DutyYesAISI 304408094
Medium DutyYesAISI 316L408194

Note: Surface electropolished.

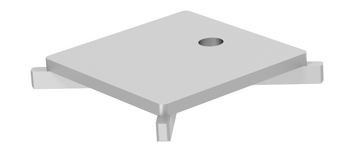

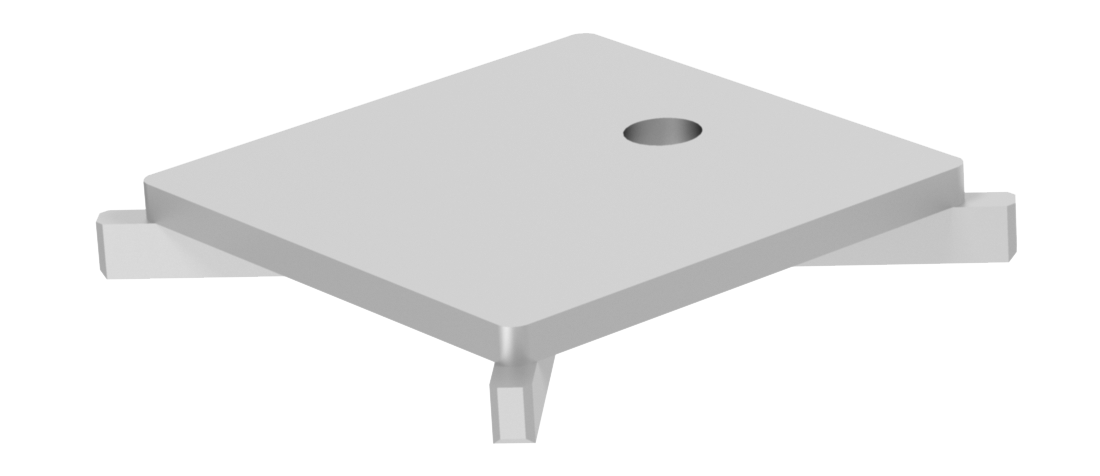

ACO Slot Cover - 8" x 8"

Load ClassSlip ResistantMaterialPart Number
8" Slot CoverSpecial DutyNoAISI 304408021
Special DutyNoAISI 316L408121

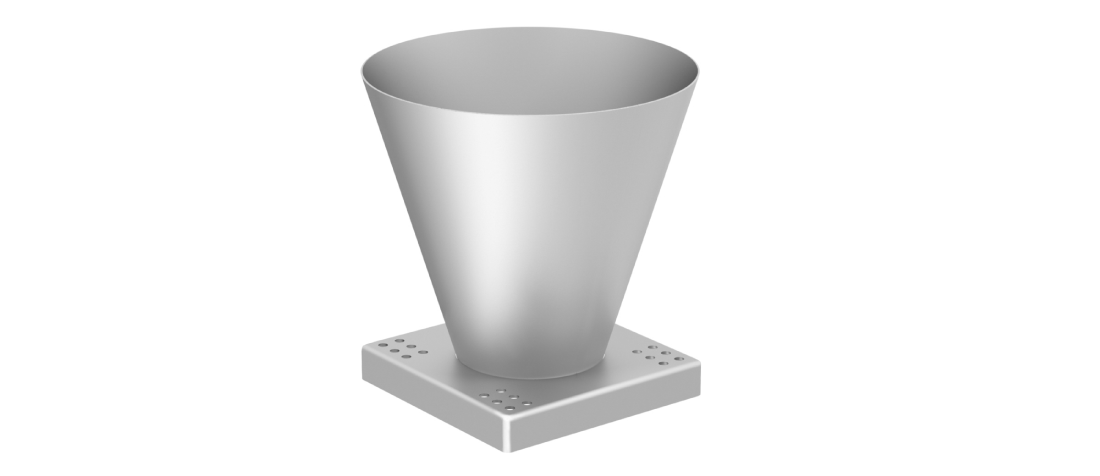

ACO Tundish for Floor Drain top - 8" x 8"

DescriptionMaterialPart Number
8" TundishACO Tundish for 8" Floor Drain topAISI 304415918

10"

ACO Hygienic Cast Grate - 10" x 10"

Load ClassSlip ResistantMaterialPart Number
10" Cast GrateSpecial DutyYes AISI 304416943*

Note: Surface electropolished.

ACO Hygienic Ladder Grate - 10" x 10"

Load ClassSlip ResistantMaterialPart Number
10" Ladder GrateLight DutyYesAISI 304416914*
Light DutyYesAISI 316L416915*
Heavy DutyYesAISI 304408028*
Heavy DutyYesAISI 316L408128*
Special DutyNoAISI 304408044*
Special DutyNoAISI 316L408144*

Note: Surface electropolished.

ACO Hygienic Mesh Grate - 10" x 10"

Load ClassSlip ResistantMaterialPart Number
10" Mesh GrateMedium DutyYesAISI 304408095
Medium DutyYesAISI 316L408195

Note: Surface electropolished.

ACO Quadrato Grate - 10" x 10"

Load ClassSlip ResistantMaterialPart Number
10" Quadrato GrateLight DutyNoAISI 304408097
Light DutyNoAISI 316L408197

ACO Heelsafe Grate - 10" x 10"

Load ClassSlip ResistantMaterialPart Number
10" Heelsafe GrateMedium DutyNoAISI 304408031
Medium DutyNoAISI 316L408131

ACO Multi-Slot 5 Grate - 10" x 10"

Load ClassSlip ResistantMaterialPart Number
10" Multi-Slot 5 GrateMedium DutyYesAISI 304408033
Medium DutyYesAISI 316L408133

Note: Surface electropolished.

ACO Slot Cover - 10" x 10"

Load ClassSlip ResistantMaterialPart Number
10" Slot CoverSpecial DutyNoAISI 304408030
Special DutyNoAISI 316L408130

ACO Tundish for Floor Drain top - 10" x 10"

DescriptionMaterialPart Number
10" TundishACO Tundish for 10" Floor Drain topAISI 304413546

12"

ACO Hygienic Cast Grate - 12" x 12"

Load ClassSlip ResistantMaterialPart Number
12" Cast GrateSpecial dutyYesAISI 304416944*

Note: Surface electropolished.

ACO Hygienic Ladder Grate - 12" x 12"

Load ClassSlip Resistant MaterialPart Number
12" Ladder GrateLight dutyYesAISI 304416916*
Light dutyYesAISI 316L416917*
Medium dutyYesAISI 304408037*
Medium dutyYesAISI 316L408137*
Heavy dutyNoAISI 304408045*
Heavy dutyNoAISI 316L408145*

Note: Surface electropolished.

ACO Mesh Grate - 12" x 12"

Load ClassSlip ResistantMaterialPart Number
12" Mesh GrateMedium dutyYesAISI 304408034
Medium dutyYesAISI 316L408134

Note: Surface electropolished.

ACO Quadrato Grate - 12" x 12"

Load ClassSlip ResistantMaterialPart Number
12" Quadrato GrateLight dutyNoAISI 304408036*
Light dutyNoAISI 316L408136*

ACO Heelsafe Grate - 12" x 12"

Load ClassSlip ResistantMaterialPart Number
12" Heelsafe GrateLight dutyNoAISI 304408040*
Light dutyNoAISI 316L408140*

ACO Multi-Slot 5 Grate - 12" x 12"

Load ClassSlip ResistantMaterialPart Number
12" Multi-Slot 5 GrateMedium dutyYesAISI 304408042
Medium dutyYesAISI 316L408142

Note: Surface electropolished.

ACO Slot Cover - 12" x 12"

Load ClassSlip ResistantMaterialItem Number
12" Slot CoverExtra heavy dutyNoAISI 304408039
Extra heavy dutyNoAISI 316L408139

ACO Tundish for Floor Drain top - 12" x 12"

DescriptionMaterialPart Number
12" TundishACO Tundish for 12" Floor Drain topAISI 304413547
